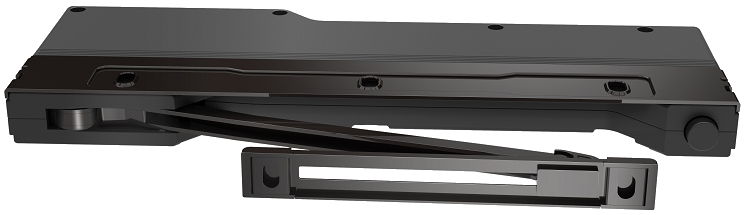

ONE-TOUCH Door Opener
Automatic mechanical door opener with soft close
SPECIFICATIONS
| Model | ONE-TOUCH 1.5L | ONE-TOUCH 1.5H |
|---|---|---|
| Door weight | Less than 5kgs | 5 kgs to 18kgs |
| Door height | Less than 900 mm | Less than 2120 mm |
| Door width | Less than 600mm | Less than 600mm |
| Opening angle | 110 degrees or 85 degrees with reducer | 110 degrees or 85 degrees with reducer |
| Life span | 50.000 cycles | 50.000 cycles |
| Item dimension | 202 x 70 x 18 mm | 202 x 70 x 18 mm |
| Colour | Black.
Available in white and grey color with MOQ. of 2000pcs per colour per order. | Black.
Available in white and grey color with MOQ. of 2000pcs per colour per order. |
BILL OF MATERIALS
| Item description | Image |
|---|---|

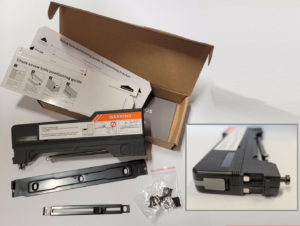

| ONE-TOUCH 1.5L
Door weight less than 5 kg | Label is Grey |  |

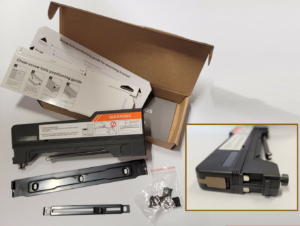

| ONE-TOUCH 1.5H
Door weight more than 5 kg and less than 18 kg | Label is Brown |  |
| Item description | Image |
|---|---|

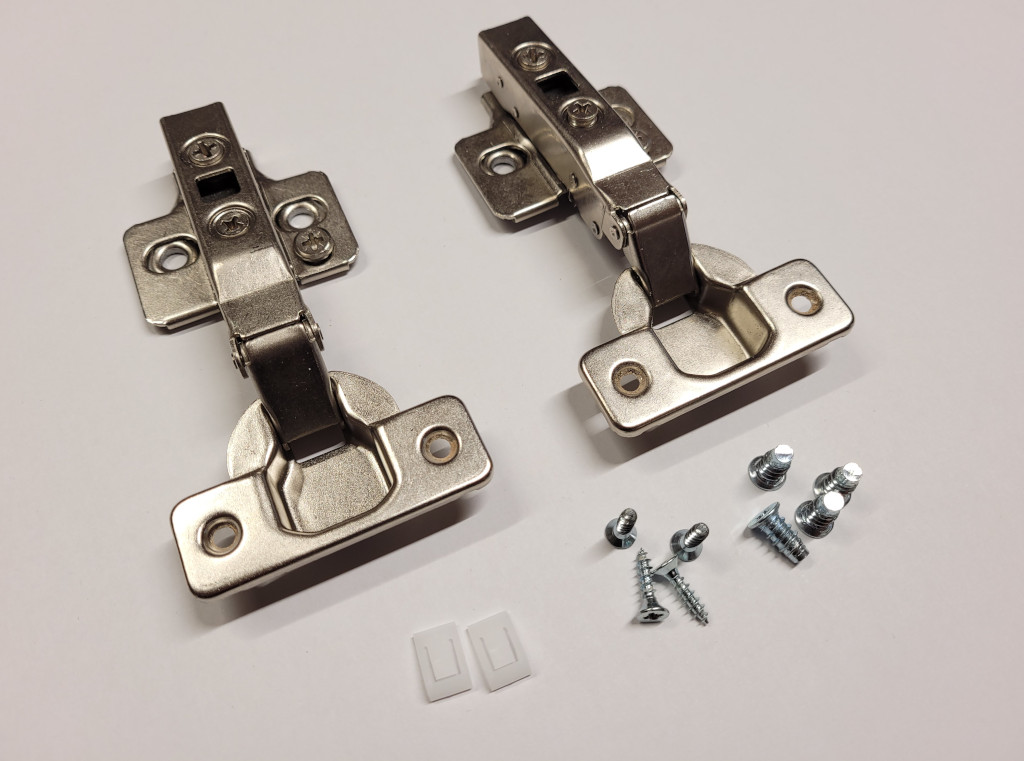

| 2 HINGES with screws and opening angle reducer clips |  |

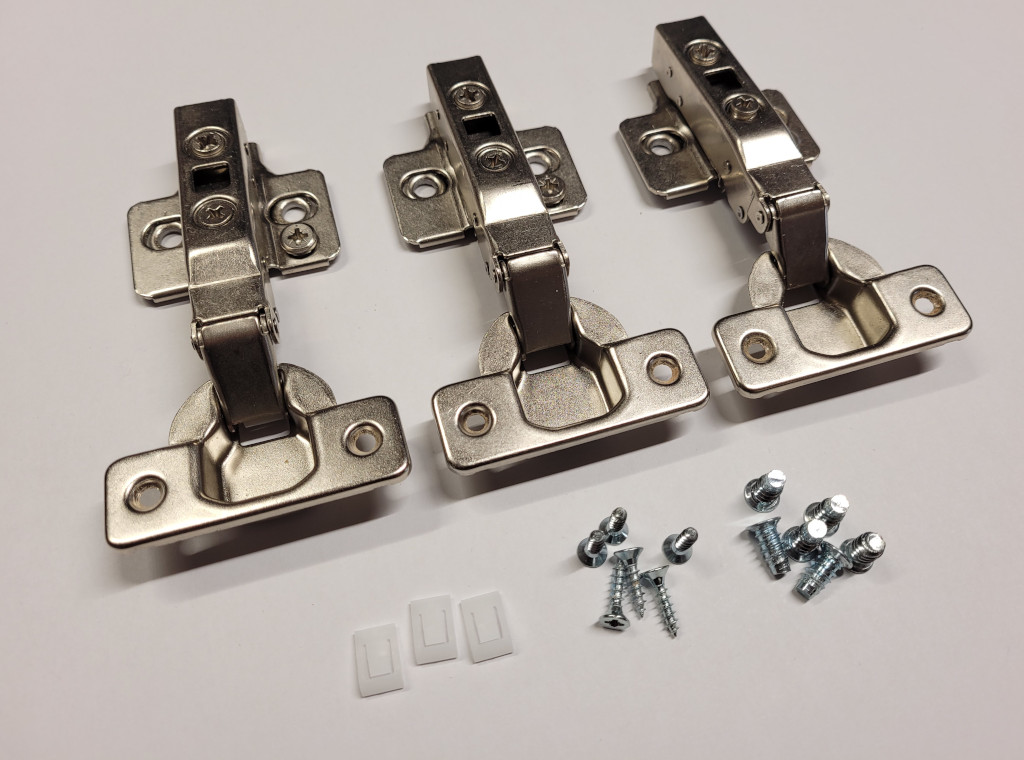

| 3 HINGES with screws and opening angle reducer clips |  |
| 4 HINGES with screws and opening angle reducer clips |  |
Hinge requirements
If you want to use another hinge system, the hinges should be：
- Without spring and soft close;
- Possible to reduce the opening angle to 85 degrees.

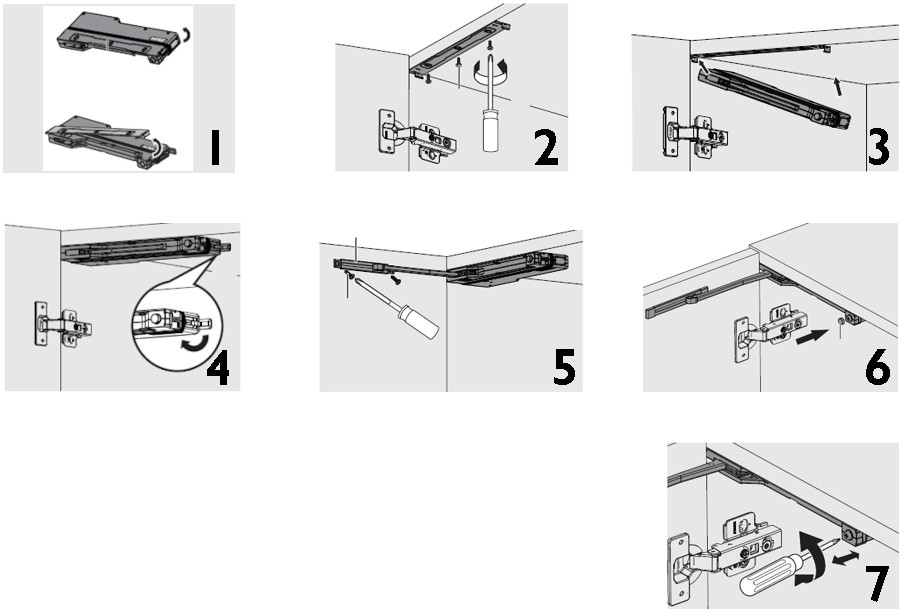

INSTALLATION
ONE-TOUCH can be retro-fitted, there is no special requirement for the cabinet.
The installation is easy and fast, which only takes 5 minutes.

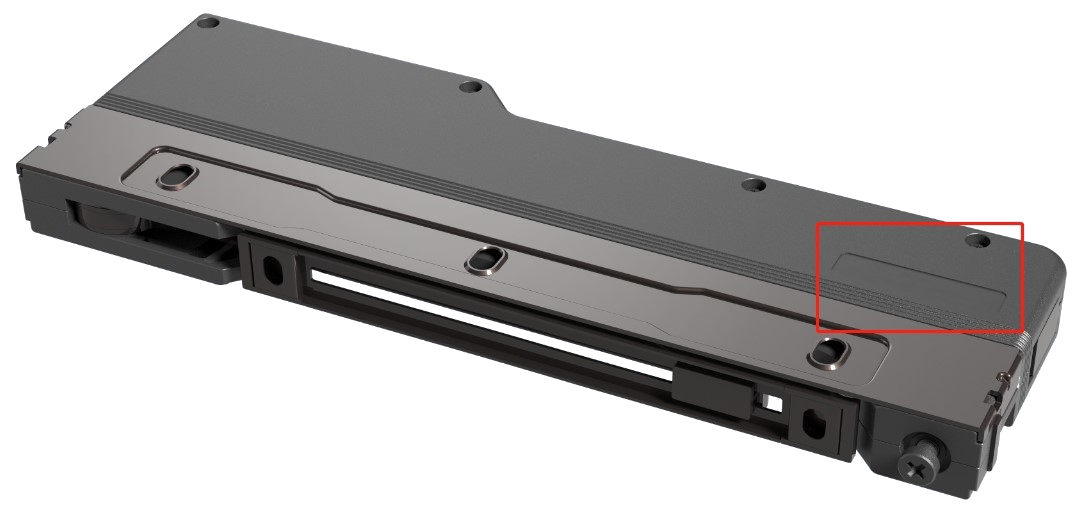

BRANDING
ONE-TOUCH is available in black, white and grey colour with minimum order quantity of 2000pcs per colour per order.
ONE-TOUCH with your own logo is also available with minimum order quantity of 2000pcs per colour per order.
CONSIDERATIONS AND SOLUTIONS
Our considerations and suggestions to you after we have tested the ONE-TOUCH.
Accidental activation during installation
We have found that accidental activation of the ONE-TOUCH is possible during installation, this will cause the opening arm to open with a great force.

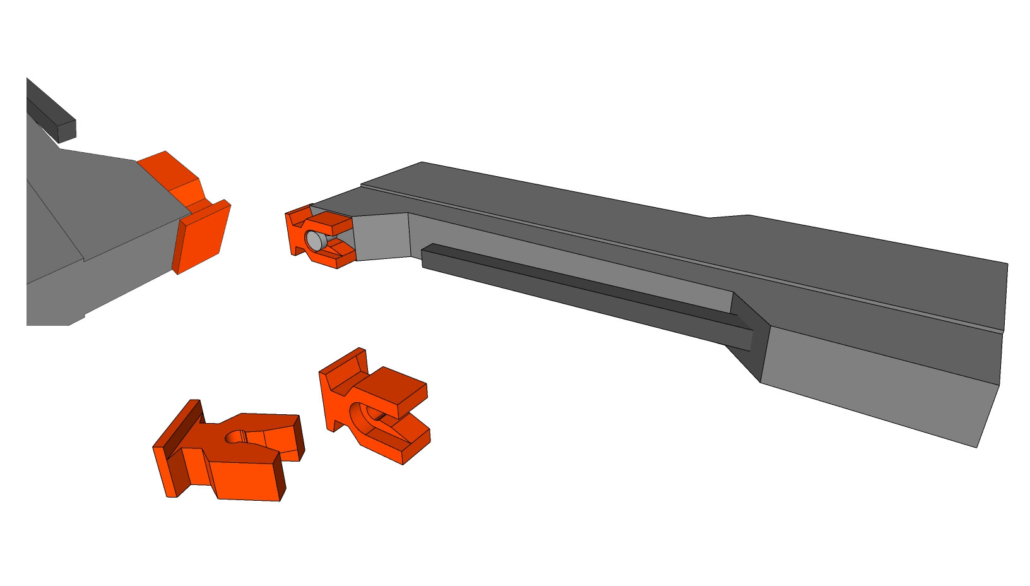

Possible solution to prevent accidental activation
If this become an issue, a potential solution could be a safety clip that is removed as the last step of the installation. Your comments and suggestions are welcome.
Rigidity of door panel
For the ONE-TOUCH to function optimally, the door panel must have a good degree of rigidity. This is needed to achieve the most reliable activation.
We found that 18-19 mm thick MDF panel is a good balance between door weight and rigidity.
Reducing opening angle
In the case of 2 doors opening against each other or against a side panel, it is necessary to reduce opening angle, so that collisions are avoided.
Collisions can be avoided by reducing the opening angle, by inserting a plastic clip into the hinge. The plastic clip is supplied with all hinges.
See the video on how to insert the plastic clip into the hinge.
Reset angle
The door needs to open beyond 80 degrees to reach the reset angle, otherwise the door will not close.
Samples and pricing
ONE-TOUCH samples are available now at Compfitt Denmark, if you would like to test it.
We have setup a test in our Randers office, where you are very welcome to visit us and try it out.
